In today’s automotive, battery, appliance, and precision metal manufacturing industries, companies are shifting to medium-frequency welding technology to achieve higher stability, energy savings, and precise heat control. At the core of this shift is the evolution of the medium frequency DC welding transformer, an advanced solution designed for cleaner and more controlled resistance welding. Whether the application involves aluminum busbars, EV battery tabs, stainless-steel components, or multi-layer metal structures, the medium-frequency DC system provides unmatched welding consistency.

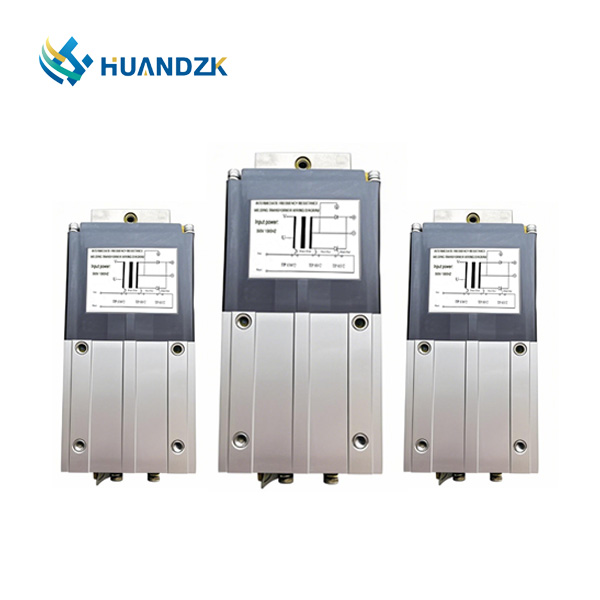

One of the most widely adopted designs is the MFDC rectangular transformer, engineered for compact installation and high-output stability. Its rectangular structure allows easy integration into robotic spot welders, nut welders, and automated welding stations. Manufacturers prefer the MFDC rectangular transformer because it provides efficient thermal management and high current density. This makes it suitable for long-cycle operations where stable current is essential to ensure uniform nugget formation.
Beyond structural improvements, the technology behind the MFDC inverter type transformer plays an even more transformative role. Traditional AC transformers suffer from waveform fluctuation and low energy efficiency. By contrast, the MFDC inverter type transformer converts power through high-frequency inverter circuits before stepping it down into welding current. This minimizes power loss, significantly reduces electrode wear, and produces smooth heat distribution. The MFDC inverter type transformer is especially valuable for precision applications such as EV battery case welding, copper-aluminum module assembly, and stainless steel sensor production.
Alongside this, the medium frequency welding power transformer provides the power stability required for consistent, repeatable welding. Using medium-frequency current (typically 1 kHz) offers major advantages over AC systems. The medium frequency welding power transformer helps eliminate magnetic imbalance, reduces spatter, improves weld penetration, and increases overall machine response speed. Factories seeking defect-free welding for thin metals, coated sheets, and high-conductivity materials rapidly adopt this transformer type as part of their long-term equipment upgrading strategy.
In more demanding industrial environments, the MFDC welder power transformer is used to support high-capacity spot, projection, and seam welding systems. This transformer delivers high output with minimal heat input, which is essential for protecting delicate components, reducing deformation, and extending electrode life. Because the MFDC welder power transformer provides precise control over current rise time and peak current, it is widely applied in automotive chassis assembly, HV connector welding, compressor shell welding, and battery pack module welding.
When comparing the medium frequency DC welding transformer with earlier AC and low-frequency DC models, several advantages stand out clearly. First is efficiency—MFDC systems can reduce power consumption by up to 30%. Second is stability—because the medium frequency DC welding transformer eliminates zero-crossing issues, its output waveform is smoother and more controllable. Third is material compatibility—aluminum, copper, coated steel, and stainless steel all benefit from the fast-response and consistent heat distribution that MFDC transformers deliver.
For automated welding lines, selecting the right transformer design plays a crucial role in production speed and long-term reliability. For example, the MFDC rectangular transformer is optimized for compact robotic systems, while the MFDC inverter type transformer suits high-precision circuits requiring dynamic response. Meanwhile, the medium frequency welding power transformer is ideal for applications that demand deep penetration and stable long-cycle working conditions. Finally, the MFDC welder power transformer provides the high-current power required for heavy-duty welding tasks while maintaining exceptional efficiency.
All five transformer types—the medium frequency DC welding transformer, MFDC rectangular transformer, MFDC inverter type transformer, medium frequency welding power transformer, and MFDC welder power transformer—share the same goal: delivering stable, high-quality welding performance across modern industries. Their use significantly enhances weld consistency, reduces defective rates, optimizes energy usage, and extends the working life of electrodes and welding equipment.
As manufacturers continue to adopt lightweight materials and pursue automated production, medium-frequency welding transformers will remain essential for ensuring quality and reliability. Whether upgrading old equipment or configuring new production lines, choosing the right MFDC transformer system will directly determine operational efficiency and long-term performance.
