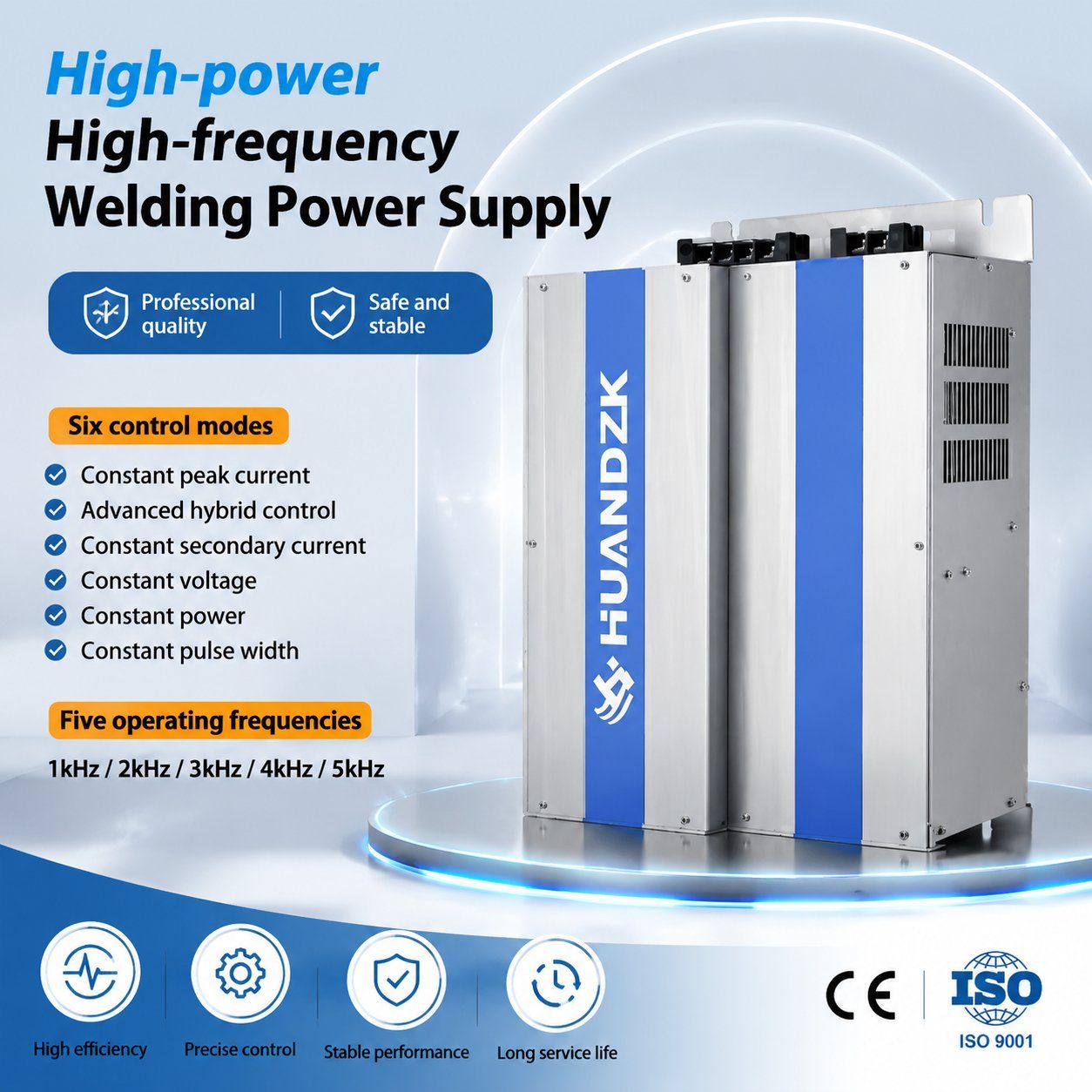

The IDP-820D / IDP-820P automotive resistance welding controller delivers precise and stable control for automotive spot welding, car body welding and robotic welding systems. Designed for modern automotive manufacturing, this automotive spot welding controller supports reliable welding performance, consistent weld quality and efficient production for automotive components, body structures and automated welding lines.
The IDP-820D / IDP-820P is a high-performance automotive resistance welding controller designed for demanding automotive production applications. Built for stable, accurate and repeatable welding, the IDP-820D / IDP-820P provides advanced control for automotive spot welding, car body welding, automotive component welding and automated resistance welding systems.
As an automotive spot welding controller, the IDP-820D / IDP-820P combines precise current control, fast response and flexible welding parameter management. It is suitable for automotive manufacturing lines where welding quality, production efficiency and process consistency are critical.
Advanced Automotive Spot Welding Controller
The IDP-820D / IDP-820P automotive spot welding controller is developed for modern automotive resistance welding applications. It can control welding current and welding time with high precision while supporting multiple welding stages and flexible welding sequences.
For car body production, the IDP-820D / IDP-820P can be integrated into automated welding equipment, robotic welding systems and customized automotive welding lines. The controller helps manufacturers achieve consistent weld quality across large production volumes.
Compared with conventional welding controls, the IDP-820D / IDP-820P automotive resistance welding controller provides more flexible parameter management and more accurate welding process control. This makes the IDP-820D / IDP-820P suitable for steel sheet, high-strength steel and other materials commonly used in automotive manufacturing.
Automotive Resistance Welding for Car Body Production
In automotive manufacturing, thousands of spot welds may be required on a single vehicle body. Welding stability directly affects structural strength and production efficiency. The IDP-820D / IDP-820P is designed specifically for this type of demanding environment.
Automation is becoming increasingly important in automotive manufacturing. The IDP-820D / IDP-820P automotive resistance welding controller is suitable for integration into automatic welding equipment and robotic production lines.
The IDP-820D / IDP-820P can be used as part of an integrated automotive welding system, providing reliable welding control for production applications requiring high repeatability.
Whether used for a standalone automotive spot welding machine or a fully automated robotic welding line, the IDP-820D / IDP-820P automotive spot welding controller provides a flexible control platform for automotive manufacturers and welding equipment builders.
The IDP-820 High Frequency Welding Power Supply is widely used in:
Automotive body spot welding
Car body resistance welding
Automotive component welding
Robotic spot welding
Automotive welding production lines
Automotive sheet metal welding
High-strength steel welding
Automotive bracket welding
Automotive structural component welding
Support multi-stage welding combination cycle pulse discharge.
Exquisite man-machine touch interface, comes with oscilloscope and monitor function, can display current, voltage, power, resistance and other 8 real waveforms and corresponding welding data.
Support pressure displacement, built-in pressure monitoring, pressure trigger, displacement monitoring, displacement depth of fusion interrupt function.
Built-in database function, can store about 5 million welding joints of current, voltage, power, resistance, pressure, displacement and other values, and support U disk export.
Monitor the average RMS value and instantaneous value of current, voltage and power to control the welding quality.
Model
IDP-820D
Output Voltage
3 phase 380V
Rated Power
170KVA
Maximum Output Current
800A(Primary)
Inverter Frequency
1KHZ - 5KHZ
Duty Cycle
5%
Control Mode
Constant Pulse Width/Constant Peak Primary/Constant Secondary Current/Hybrid Control
Cooling Mode
Water Cooling
Communication Mode
RS-232/RS-485/Ethernet, etc.
No-load Voltage
11.3 V
Features
Transformer and controller separated
Welding Time Setting
Pre-pressure Time
0-9999ms
Pressurization Time
0-9999ms
Slow Rise 1 Time
0-9999cyc
Welding 1 Time
0-9999cyc
Slow Down 1 Time
0-9999cyc
Cooldown
0-9999cyc
Slow Rise 2 Time
0-9999cyc
Welding 2 Time
0-9999cyc
Slow Down 2 Time
0-9999cyc
Slow Rise 3 Time
0-9999cyc
Welding 3 Time
0-9999cyc
Slow Down 3 Time
0-9999cyc
Holding Time
0-9999ms
Rest Period
0-9999ms
Finish Time
0-9999ms
Number Of Cycles
0-9
Setting Range For Secondary Current
0.10~35.00kA
Setting Range Of Pulse Width
1% - 100%
Setting Range For Secondary Voltage
0.02 - 10V
Current control precision
1%
Impedance control accuracy
Support
Tripping function
Support
Offline data upload
Support
Loop monitoring
Support
Adaptive function
Support
Current pre-check
Support
Current monitoring
0.00 ~ 45KA
Repair welding
Support
Communication protocal
Standard：RS-232、RS-485、ModBus TCP/IP
Optional：EtherNet/IP，ProfiNet，EtherCAT，DeviceNet, etc.
Whether used for a standalone automotive spot welding machine or a fully automated robotic welding line, the IDP-820D / IDP-820P automotive spot welding controller provides a flexible control platform for automotive manufacturers and welding equipment builders.
Why Choose IDP-820D / IDP-820P?
The IDP-820D / IDP-820P automotive welding controller is designed for manufacturers looking for reliable and precise resistance welding control. Its combination of accurate welding control, flexible parameter management and automation compatibility makes it suitable for modern automotive production.
