IDP-1220D / IDP-1220P Automotive Resistance Welding Controller for Auto Parts, Welding Guns & New Energy
IDP-1220D / IDP-1220P Automotive Resistance Welding Controller for Auto Parts, Welding Guns & New Energy
The IDP-1220D / IDP-1220P automotive resistance welding controller is designed for automotive parts welding, welding gun systems and new energy applications. It provides stable and precise control for automotive spot welding, robotic welding and automated resistance welding, supporting EV components, battery parts, brackets, sheet metal and other demanding automotive manufacturing applications.
Details
IDP-1220D / IDP-1220P Automotive Resistance Welding Controller for Auto Parts, Welding Guns & New Energy
The IDP-1220D / IDP-1220P is a high-performance automotive resistance welding controller designed for demanding welding applications in automotive parts manufacturing, welding guns and new energy industries. With precise welding control and stable process performance, the IDP-1220D / IDP-1220P provides an efficient solution for automotive resistance welding, automotive spot welding and automated welding production.
The IDP-1220D / IDP-1220P automotive resistance welding controller is developed for manufacturers that require accurate, stable and repeatable welding. The controller can be integrated with different welding machines, welding guns and automated production systems to meet the requirements of modern automotive manufacturing.
For automotive parts welding, the IDP-1220D / IDP-1220P provides reliable control of the welding process, helping manufacturers maintain consistent weld quality during high-volume production. The automotive resistance welding controller is suitable for welding brackets, metal components, sheet metal parts, fasteners and other automotive components.

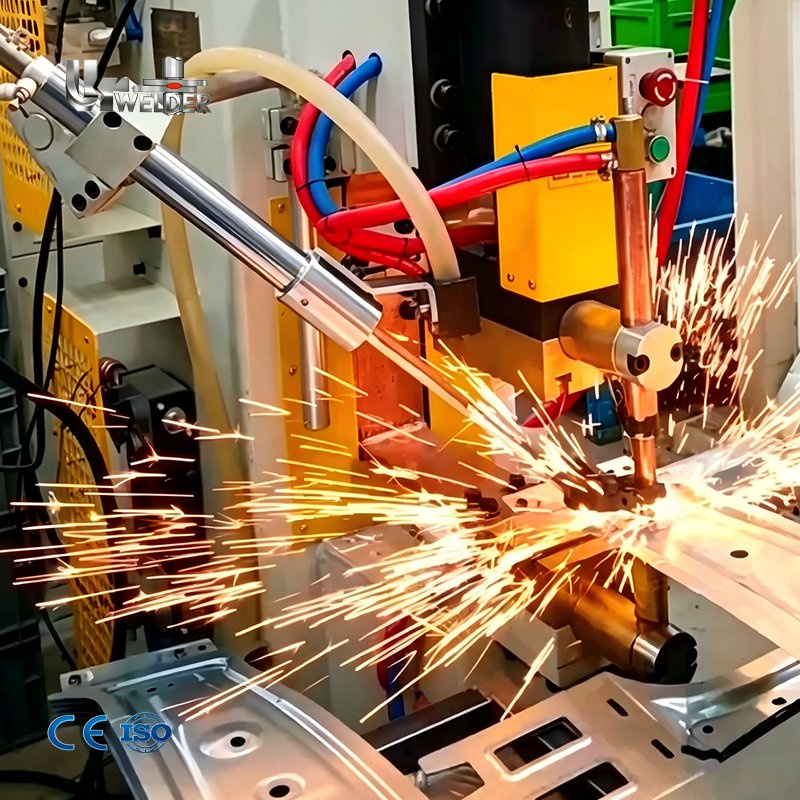

The IDP-1220D / IDP-1220P automotive spot welding controller is also suitable for automated welding equipment and robotic welding systems. Combined with a suitable welding gun and transformer, the controller can form a complete automotive welding solution.
Automotive Parts Welding
Automotive parts require high welding consistency and production efficiency. The IDP-1220D / IDP-1220P automotive resistance welding controller is designed for automotive parts welding applications where stable welding parameters are essential.
The IDP-1220D / IDP-1220P automotive resistance welding controller is designed to provide stable welding performance during continuous production. Accurate control of welding parameters is particularly important when welding automotive parts, where inconsistent welds can affect product quality and production efficiency.
With the IDP-1220D / IDP-1220P, manufacturers can develop automotive spot welding machines, welding gun systems and automated resistance welding equipment according to their specific production requirements.
The IDP-1220D / IDP-1220P can be used for:
EV automotive parts welding
New energy vehicle component welding
Battery component welding
Battery pack component welding
Busbar welding
Copper and aluminum component welding
Electrical connector welding
New energy automotive spot welding
Automated EV component weldin
Support multi-stage welding combination cycle pulse discharge.

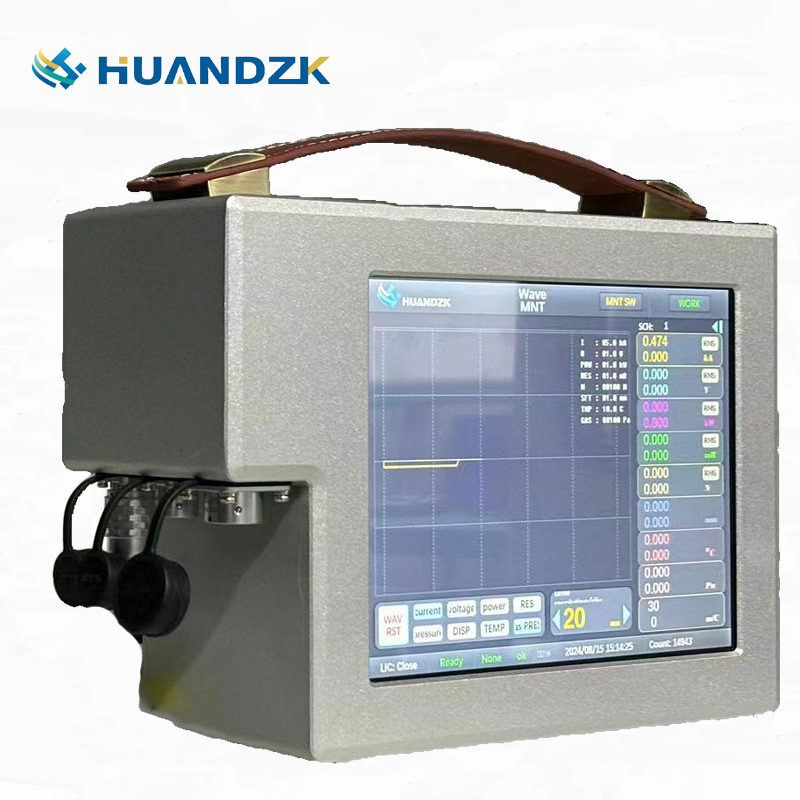

Exquisite man-machine touch interface, comes with oscilloscope and monitor function, can display current, voltage, power, resistance and other 8 real waveforms and corresponding welding data.
Support pressure displacement, built-in pressure monitoring, pressure trigger, displacement monitoring, displacement depth of fusion interrupt function.
Built-in database function, can store about 5 million welding joints of current, voltage, power, resistance, pressure, displacement and other values, and support U disk export.
Monitor the average RMS value and instantaneous value of current, voltage and power to control the welding quality.
Model
IDP-1220D/IDP-1220P
Output Voltage
3 phase 380V
Rated Power
240KVA
Maximum Output Current
1200A(Primary)
Inverter Frequency
1KHZ - 5KHZ
Duty Cycle
5%
Control Mode
Constant Pulse Width/Constant Peak Primary/Constant Secondary Current/Hybrid Control
Cooling Mode
Water Cooling
Communication Mode
RS-232/RS-485/Ethernet, etc.
No-load Voltage
12.5 V
Features
Transformer and controller separated
Welding Time Setting
Pre-pressure Time
0-9999ms
Pressurization Time
0-9999ms
Slow Rise 1 Time
0-9999cyc
Welding 1 Time
0-9999cyc
Slow Down 1 Time
0-9999cyc
Cooldown
0-9999cyc
Slow Rise 2 Time
0-9999cyc
Welding 2 Time
0-9999cyc
Slow Down 2 Time
0-9999cyc
Slow Rise 3 Time
0-9999cyc
Welding 3 Time
0-9999cyc
Slow Down 3 Time
0-9999cyc
Holding Time
0-9999ms
Rest Period
0-9999ms
Finish Time
0-9999ms
Number Of Cycles
0-9
Setting Range For Secondary Current
0.10~50.00kA
Setting Range Of Pulse Width
1% - 100%
Setting Range For Secondary Voltage
0.02 - 10V
Current control precision
1%
Impedance control accuracy
Support
Tripping function
Support
Offline data upload
Support
Loop monitoring
Support
Adaptive function
Support
Current pre-check
Support
Current monitoring
0.00 ~ 60KA
Repair welding
Support
Communication protocal
Standard：RS-232、RS-485、ModBus TCP/IP
Optional：EtherNet/IP，ProfiNet，EtherCAT，DeviceNet, etc.
The IDP-1220D / IDP-1220P automotive resistance welding controller is designed to provide stable welding performance during continuous production. Accurate control of welding parameters is particularly important when welding automotive parts, where inconsistent welds can affect product quality and production efficiency.
With the IDP-1220D / IDP-1220P, manufacturers can develop automotive spot welding machines, welding gun systems and automated resistance welding equipment according to their specific production requirements.
The IDP-1220D / IDP-1220P automotive welding controller is therefore suitable for automotive parts manufacturers, welding equipment manufacturers, welding automation companies and new energy manufacturers.
