Capacitor Discharge Energy System: High-Precision Power for Modern Welding Applications

In today’s advanced manufacturing environment, precision, efficiency, and energy control are critical. The capacitor discharge energy system has become a core solution for industries that demand stable welding quality with minimal thermal impact. From automotive components to micro-electronics and precision metal joining, capacitor-based welding technology is redefining performance standards.

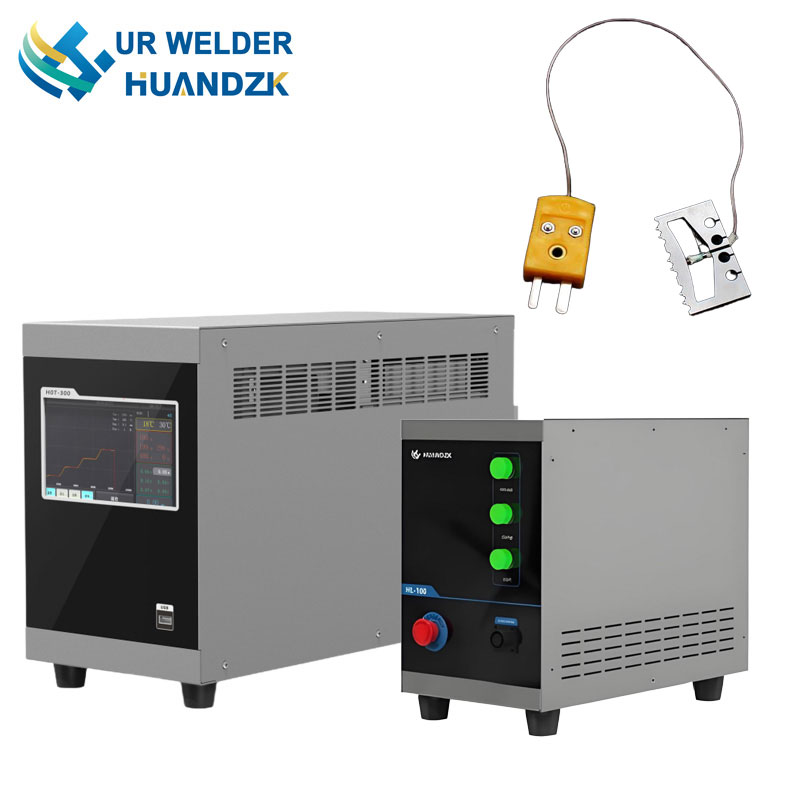

A modern capacitor discharge inverter welder combines fast energy release with intelligent power conversion, ensuring repeatable welds even under high-speed production conditions. Unlike conventional AC or transformer-based welding systems, the capacitor discharge inverter welder stores energy in a capacitor bank and releases it within milliseconds. This controlled discharge minimizes heat-affected zones while delivering high peak current exactly when needed.

Intelligent Energy Control for Consistent Welding Quality

At the heart of this technology lies the capacitor discharge current control unit, which precisely regulates discharge current, rise time, and pulse width. This current control unit allows manufacturers to fine-tune welding parameters for different materials such as copper, aluminum, nickel, and stainless steel. Compared with traditional welding controllers, a capacitor discharge current control unit offers superior repeatability and process stability, especially for thin materials and dissimilar metal welding.

The energy storage welding controller further enhances system intelligence. By monitoring voltage, current, and stored energy in real time, the energy storage welding controller ensures every weld is executed with consistent energy output. This is especially important in automated production lines where process drift can lead to quality defects or material waste. An advanced energy storage welding controller also supports data logging, quality traceability, and integration with MES or industrial automation systems.

Optimized Capacitor Bank for Welding Applications

A high-performance capacitor bank for welding is the foundation of any reliable capacitor discharge energy system. Designed for high current and rapid charge-discharge cycles, the capacitor bank for welding provides stable energy storage while maintaining long service life. Industrial-grade capacitor banks are engineered to withstand frequent pulsed loads, making them ideal for mass production environments.

When properly matched with a capacitor discharge inverter welder, the capacitor bank for welding ensures minimal voltage drop and consistent output energy. This synergy reduces electrode wear, lowers spatter, and significantly improves weld appearance and mechanical strength.

Advantages Over Conventional Welding Technologies

Compared to MFDC or AC resistance welding systems, a capacitor discharge energy system offers clear advantages:

• Lower overall energy consumption

• Extremely short welding time

• Minimal heat input and distortion

• High peak current with precise control

• Excellent performance for micro-welding and precision welding

The capacitor discharge inverter welder is particularly suitable for battery tab welding, motor armature welding, wire-to-terminal welding, and electronics assembly. In these applications, the combination of a capacitor discharge current control unit and an energy storage welding controller guarantees stable results even under demanding conditions.

Industry Applications and Future Trends

As manufacturing continues to move toward lightweight materials and compact designs, the demand for capacitor-based welding solutions is growing rapidly. The capacitor discharge energy system is now widely adopted in automotive electronics, new energy vehicles, aerospace components, and precision medical devices.

With continuous advancements in power electronics, the next generation of capacitor discharge inverter welder solutions will feature smarter energy storage welding controllers, higher-density capacitor banks for welding, and enhanced digital control. These innovations will further improve process reliability and production efficiency.

Conclusion

A well-designed 600">capacitor discharge energy system, supported by a high-precision capacitor discharge inverter welder, intelligent capacitor discharge current control unit, advanced energy storage welding controller, and durable capacitor bank for welding, represents the future of precision resistance welding. For manufacturers seeking consistent quality, reduced energy costs, and superior process control, capacitor discharge welding technology is a proven and forward-looking solution.
