Modern resistance welding requires accurate monitoring, real-time data collection, and reliable quality control. Our advanced weld quality monitor provides complete welding process analysis by monitoring welding current, voltage, time, pressure, and displacement. The weld quality monitor helps manufacturers improve welding consistency, reduce defects, and achieve intelligent production management.
The weld process recorder is designed to record and analyze every welding process in detail. With high-speed data acquisition, the weld process recorder captures welding parameters and generates complete welding records for traceability. It is widely used in automotive manufacturing, EV battery production, electronics assembly, and precision metal welding.
The weld pressure displacement sensor accurately measures electrode pressure and displacement changes during welding. The weld pressure displacement sensor helps detect abnormal welding conditions caused by insufficient pressure, electrode wear, or mechanical problems. Combined with a HD-400B-all-rounds-comprehensive-welding-monitor.html">welding monitoring system, it ensures stable welding performance and improves production reliability.
The weld time analyzer provides precise measurement and analysis of welding time, current duration, and welding cycle performance. The weld time analyzer is an essential tool for optimizing welding parameters and improving welding efficiency in high-volume manufacturing.
The weld voltage monitor monitors real-time welding voltage changes to ensure stable energy output and consistent weld quality. The weld voltage monitor helps engineers analyze welding conditions and quickly identify process abnormalities.

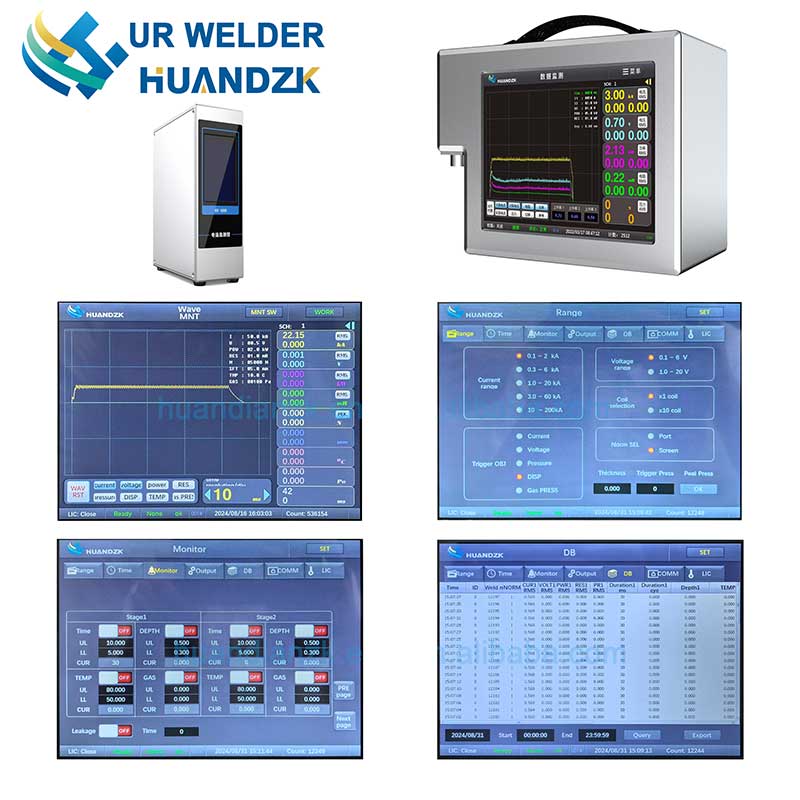

Our HD series welding monitoring solutions include HD-400B and HD-100B, designed for different resistance welding applications. HD-400B supports advanced monitoring functions including current, voltage, power, pressure, displacement, and waveform analysis. HD-100B provides a compact and reliable solution for basic welding quality inspection and data monitoring.
By integrating weld quality monitor, weld process recorder, weld pressure displacement sensor, weld time analyzer, and weld voltage monitor, HD-400B and HD-100B provide complete welding quality management solutions. These systems help manufacturers achieve higher welding accuracy, better traceability, and smarter production control.
HD-400B and HD-100B welding monitors are ideal solutions for automotive parts, battery welding, electronics, hardware, and precision resistance welding industries.
