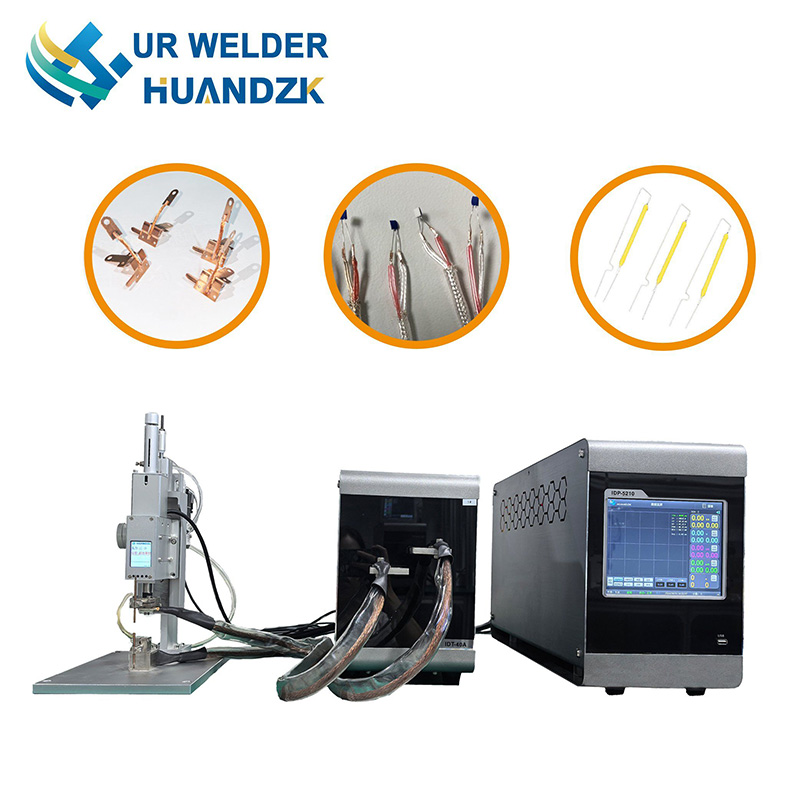

In high-end manufacturing, welding accuracy and stability are key factors in determining product quality. Guangdong Ur Welder Co., Ltd., leveraging over a decade of technological expertise, has launched the next-generation IDP-1210 ultra-precision resistance welding power supply. This breakthrough innovation redefines precision welding standards and provides a "zero-defect" welding solution for demanding industries such as new energy batteries, aerospace, and electronic components.
Core Performance: Nanoscale Control, Millisecond Response
The IDP-1210 is equipped with Huandian's independently developed seventh-generation DSP digital signal processing system, combined with fully digital inverter technology, achieving current control accuracy of ±0.1% and a time resolution exceeding 0.1ms. Its unique multi-band dynamic adjustment algorithm intelligently matches five operating frequencies, easily handling the welding of ultra-thin metal sheets as thin as 0.01mm. Nut size deviation is kept within ±5%, completely resolving the industry pain points of traditional equipment, including large spatter and deep indentations.
Intelligent Process Library: One-click access and full process traceability.
The device features 32 built-in welding parameter specifications, allowing users to customize and store eight key parameters, including welding current, voltage, pressure, and displacement. Bench spot welder also stores 5 million production data records, which can be quickly exported via USB flash drive. The resistance welding 8-inch HD touchscreen integrates a real-time oscilloscope, displaying eight real-world waveforms simultaneously. Combined with intelligent monitoring modules such as pressure triggering and displacement penetration interruption, tiny spot welder achieves fully closed-loop control of the welding process, reducing defective product rates by 90%.
Industrial-grade design: Stable and durable, reducing costs and increasing efficiency.
The IDP-1210 utilizes an integrated aircraft-grade aluminum alloy chassis and imported IGBT power modules, improving continuous operating stability by 300%. Resistance welding terminal equipment industry-first servo motor pressure control system enables stepless pressure adjustment, reducing weld head resetting impact by 80% and extending electrode life by more than double. Field-proven, a single device can replace three traditional cylinder-type welding machines, saving over 100,000 yuan in consumables costs annually.
Industry Applications: Covering all precision welding needs.
New Energy Batteries: 0.05mm tab welding yield rate ≥99.95%, meeting the high-speed production demands of power battery pack lines.
Aerospace: Welding lightweight materials such as titanium alloys and high-temperature alloys with a heat-affected zone ≤0.2mm.
Electronics Manufacturing: Micro-spot welding of 0201 packaged components and flexible printed circuit boards, eliminating carbonization and deformation.
Medical Devices: Welding of 316L stainless steel endoscope components, achieving IP68 sealing.
Service Guarantee: Global Presence, Lifetime Support.
Huandian offers a 24-month free warranty and lifetime maintenance service. Six technical service locations nationwide guarantee a 2-hour response and 24-hour on-site service. The equipment holds international certifications such as CE, UL, and CCC, and has been exported in batches to 15 countries and regions, including Germany, Japan, and South Korea. The company has become a long-term partner of companies such as Tesla, Panasonic, and Huawei.
Huandian IDP-1210 - Creating Industrial Beauty with Precision.
