Our capacitor discharge welders (CD welders) leverage advanced electronic voltage elevation and constant-current charging circuit technology to store electrical energy in capacitors. This stored energy is discharged instantaneously to the workpiece via a pressure mechanism, melting the contact metal

  • Details

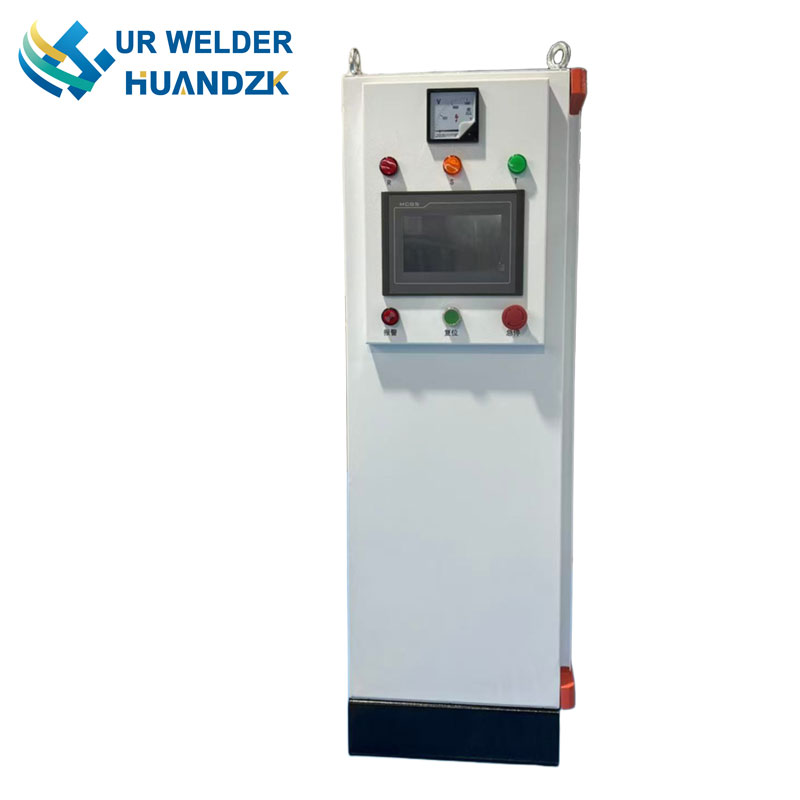

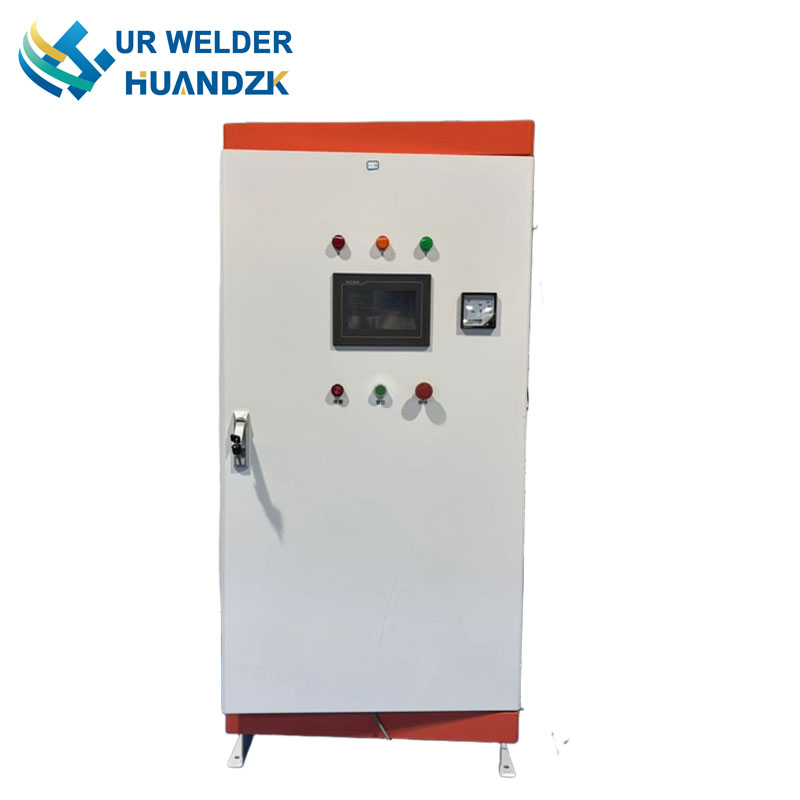

    Capacitive Discharge Welder ESW 100

    The stored energy welding power supply – commonly called a Capacitive Discharge Welder or CD Welder – extracts energy from the power line over a period of time and stores it in welding capacitors. Thus, the effective weld energy is independent of line voltage fluctuations. This stored energy is rapidly discharged through a pulse transformer producing a flow of electrical current through the welding head and workpieces.

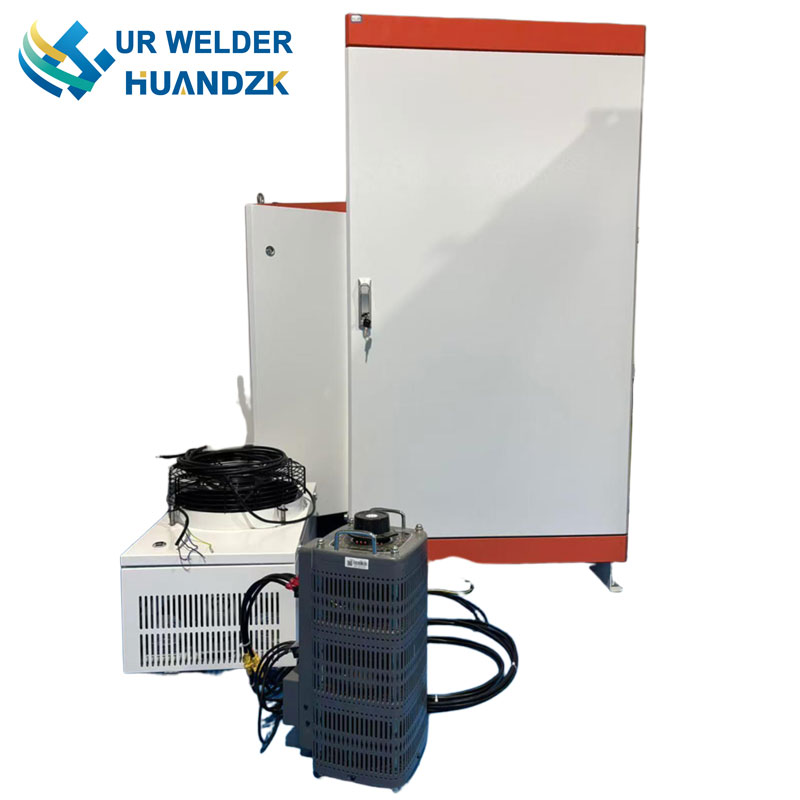

    capacitor discharge metal welding

    Capacitive discharge power supplies are rated in accordance with the amount of energy they store and the welding speed. The energy stored, expressed in watt-seconds (joules), is the product of one-half the capacitance of the capacitor bank and the square of the applied voltage. The energy delivered to the electrodes is considerably less than this value because of losses in the primary and secondary circuits.

    Product Parameters

    ModelESW-100
    Input Voltage3phase AC 380V~480V±10%
    Output Voltage15-400HZ, PWM 1000V
    Duty Cycle10%
    Cooling MethodAir
    No. of Schedule17
    Heating Stage3
    CommunicationRS-485
    Capacitance10000µF

    Related tags:： powersupply dc capacitor discharge cd CD
